Gas Bottle Cage Panels
Available to buy on line

Examples |
2 sided using 2 walls, L shape run, Please click here. |
|

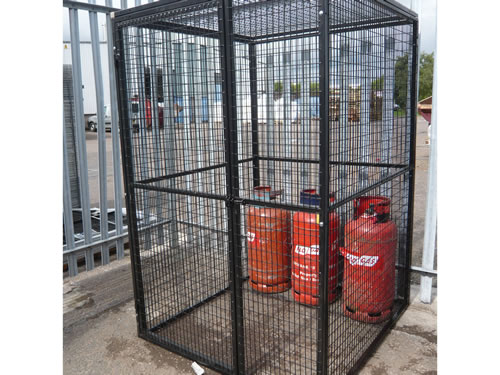

4 sided free standing as per above photo, Please click here |
:

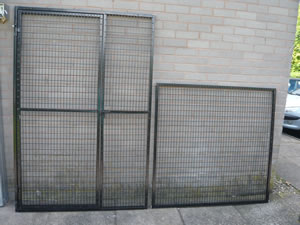

The panels are manufactured from 2" x 1" Welded Mesh with 3mm diameter wire with a 25mm box section frame which are galvanized then black powder coated. If you have a wall you wish to incorporate into the pen you can attach our panels with wall plugs using the holes already available in the panels.
This example is of 6ft x 4ft x 4ft high cages that have been modified with a jig saw to accept the pipework. |
 |
* |
Several sizes of panels are available, sides and doors both are 6ft x 4ft. (1830mm high x 1220mm wide) |
* |

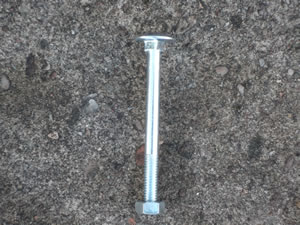

Very easy installation with only 3 coach bolts required to join panels. The same applies for the doors, which are already fitted into the frames |
* |
All panels are pre-drilled on the verticals through both faces this means that any panel can be used either as side or a corner panel. Hence the system is versatile enough to make any shape or length |
* |
As the system is modular it can be taken down quickly and reassembled. This allows you to move the run around. |
* |
Modular Design means you can easily choose to have your cage as big or small as you require, and if at a later date you decide you need it to be larger, then all you have to do is add more panels |
* |
Cage accepts padlock under latch. |
* |
Strong Welded Hinges and a Heavy Duty Spring Bolt on the Door Panel |
* |
Profile roofs are available if required standard roof panels to fit any shape |
* |
All available from stock |
